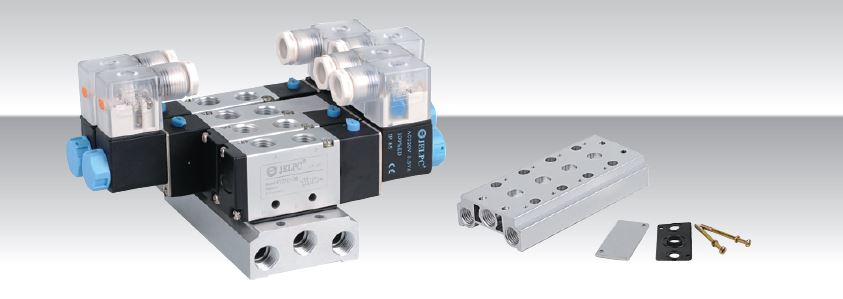

100-400
| Inside Diameter/ Symbol | A | B | C | E | F | G | H | K | L | M | Q | R | S | W | X | Y |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100M- IF | 58 | 43 | 20 | 4.2 | 18.3 | 19 | 5 | 140 | (n-1)*19+38 | 155 | G 1/4 | 40 | 30 | 78 5 | 25 | 27 |
| 200M- IF | 59 | 50 | 21 | 4.3 | 22.2 | 23 | 6 | 170 | (n-1)*23+46 | 189 | G 1/4 | 43 | 32 | 92 5 | 26 | 35 |
| 300M- IF | 75 | 64 | 26 | 45 | 27.3 | 27 | 6 | 189 | ( n 1)*28+54 | 208 | G 3/8 | 53 | 48 | 99 | 30 | 40 |
| 400M-IF | 98 | 94 | 32 | 5.5 | 34.3 | 31.5 | 7 | 222 | (n-1)*35 + 63 | 243 | G 1/2 | 68 | 67 | 112 | 38 | 50 |
