4V100
| Port size: | G1/8’’ i M5x0,8 |
|---|---|
| Type: | 3/2-, 5/2- i 5/3-way |
| CV: | 0,53-067 |
| Effective Cross Section Area: | 7-12 mm2 |

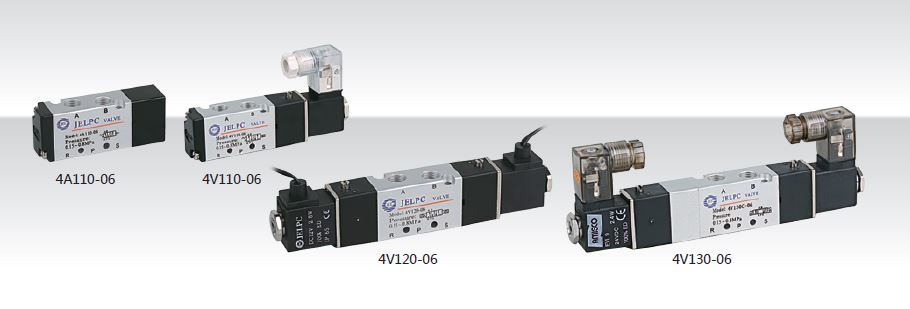

| Model | 4V110-M5 | 4V120-M5 | 4V130C-M5 | 4V130E-M5 | 4V130P-M5 | 4V110-06 | 4V120-06 | 4V130C-06 | 4V130E-06 | 4V130P-06 |
|---|---|---|---|---|---|---|---|---|---|---|
| 4A110-M5 | 4A120-M5 | 4A130C-M5 | 4A130E-M5 | 4A130P-M5 | 4A110-06 | 4A120-06 | 4A130C-06 | 4A130E-06 | 4A130P-06 | |
| Valve Type | 5/2 way | 5/3 way | 5/2 way | 5/3 way | ||||||
| Effective Cross Section Area | 10 mm2 (CV = 0.56) | 7 mm2 (CV = 0.40) | 12 mm2 (CV = 0.67) | 9 mm2 (CV = 0.5) | ||||||
| Model | 3V110-M5 3V120- | M5 3A110-M5 3A120-M5 | 3V110-06 | 3V120-06 3A110-06 | A120-06 | |||||
| Valve Type | 3/2 way | |||||||||
| Effective Cross Section Area | 10 mm2 (CV = 0.56) | 12 mm2 ( CV = 0.67) | ||||||||
| Port Size | Inlet, Outlet, Exhaust Port = M5 x 0.8 | Inlet, Outlet, Exhaust Port = G 1/8" | ||||||||
| Working Medium | 40 Micron Filtered Air | |||||||||
| Operation | Internal piloted | |||||||||
| Working-pressure | 0.15-0.8 MPa | |||||||||
| Max. Test Pressure | 1.2 MPa | |||||||||
| Ambient Temperature | 5-50 °C | |||||||||
| Operating Voltage Tolerance | ± 10% | |||||||||
| Power Consumption | AC: 2.8 VA DC: 2.8 W | |||||||||
| Connector Protection | F Class, IP 65 | |||||||||
| Wiring / Connector | Cable / Lead Wire or DIN Connector | |||||||||
| Switching Frequency | 5 Cycles / Sec. | |||||||||
| Response Time | 0.05 Sec. | |||||||||
