SLA

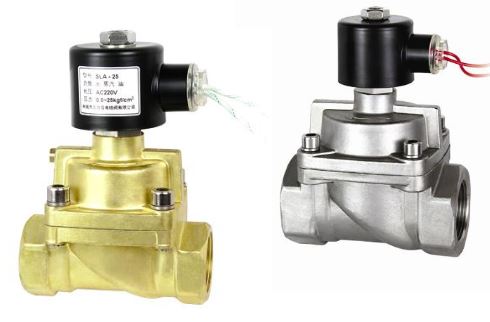

2/2-wat pilot operated piston solenoid valve
| Body: | brass, stainless steel 304 or 316 |
|---|---|
| Orifice Φ [mm]: | 13 ~ 50 |
| Pressure: | 0,5 ~ 25 bar |
| Pipe connection: | 3/8" ~ 2", 1/8" ~ 2" |
| Medium: | steam, water, hot water, air, gas, oil |
| Flange | DN25~DN50 |
| Type: | normal close, normal open |
1: 2-Way normally dosed solenoid valve; Closed when de-energized, open when energized.
2: Body material: brass or stainless steel.
3: Max. Allowable pressure 40kgf/cm2; Ambient Temp. 0-65°C (F CLASS) 0-80°C (H CLASS)
4: Serialized products, small In size, large flow rate, widely use.
5: Flow as the arrow, mounts in any position. Best position is solenoid vertical and upright direction.
6: Voltage: 220VAC/230VAC/240VAC/110VAC/24VAC 50/60HZ 24VDC/12VDC; Voltage Tolerance: + 10% to -10%applicable voltage.
7: Coil can fix Germany MASS Coil,Standard storage: 220VAC/230VAC/240VAC 50/60HZ 24V
8: This series valves are offered Teflon for seals to provide on-off control of various fluids.
