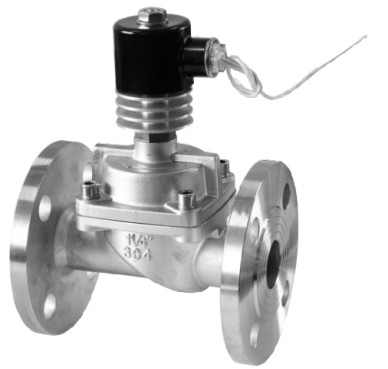

SLH
2/2-way high temperature solenoid valve
| Body: | brass, stainless steel 306 lub 316 |
|---|---|
| Temp. | 225 °C |
| Orifice Φ [mm]: | 15 ~ 50, 2.5 ~ 40 |
| Pressure: | 0,5 ~ 25 bar |
| Pipe connection: | 3/8" ~ 2" |
| Media: | couple, water, hot water, air, gas, oil |
| Flange: | DN25~DN50 |
| Type: | normally close |
SLH 2/2 way normally dosed ,high temperature solenoid valve series , its a common operator in the automatic control system ; adpot the pilot valve , radiator , the pistons(main valve) to be a combination structure design , energized open , de-energized dosed . Mainly used in the automatic open/closed in the pipeline of steam , heat-conducting oil etc high-temperature media So as to achieve the procedure control or long-distance control of systems and equipment
