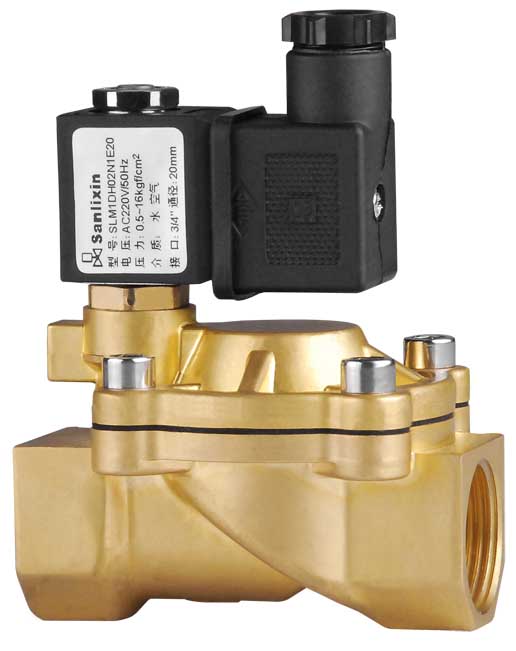

SLM
2/2-way direct acting solenoid valve
| Body: | brass |
|---|---|
| Orifice Φ [mm]: | 12 ~ 25 |
| Pressure: | 0.5 ~ 16 bar |
| Pipie connection: | 1/2" ~ 1" |
| Medium: | water, hot water, air, gas, oil |
| Type: | normally close |
1: 2-Way normally closed solenoid valve, Closed when de-energized, open when energized.
2: Serialized products, small in size, large flow rate, widely use
3: Body material: forged brass.
4: Ambient Temp. 0-65°C, Fluids Temp 0-130°C
5: Flow as the arrow, mounts in any position; Best position is solenoid vertical and upright direction.
6: Voltage: 220VAC/230VAC/240VAC/110VAC/24VAC 50/60HZ 24VDC/12VDC; Voltage Tolerance: +10% to -10% applicable voltage
7: This series valves are offered NBR, VITON, EPDM etc for Seals and diaphragm to provide on-off control of various fluids.
