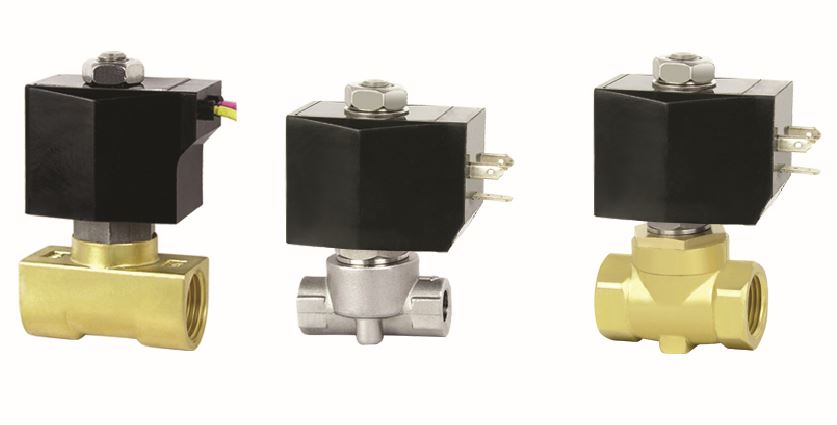

ZS compact
Compact series 2/2-way direct acting solenoid valve
| Body: | brass, stainless steel 304 lub 316 |
|---|---|
| Orifice Φ [mm]: | 2,5 ~ 10,0 |
| Pressure: | 0 ~ 20 bar |
| Pipe connection: | 1/8" ~ 1/2" |
| Medium: | water, hot water, air, gas, oil itp. |
| Type: | normally close |
1: 2-Way normally dosed solenoid valve, Closed when de-energized, open when energized. Body material: brass
2: Max. Allowable pressure 16kgf/cm2; Fluids Temp: 0-120 ℃
3: Serialized products, small in size, large flow rate, widely use
4: Flow as the arrow, mounts in any position; Best position is solenoid vertical and uptight direction.
5: Voltage: 220VAC/230VAC/240VAC/110VAC/24VAC 50/60HZ 24VDC/12VDC: Voltage Tolerance: +10% to -10% applicable voltage
6: Coil can fix Germany Ness Coil, for orifice under DN25 only.
7: This series valves are offered NBR, VITON, EPDM etc for Seals and diaphragm to provide on-off control of various fluids.
