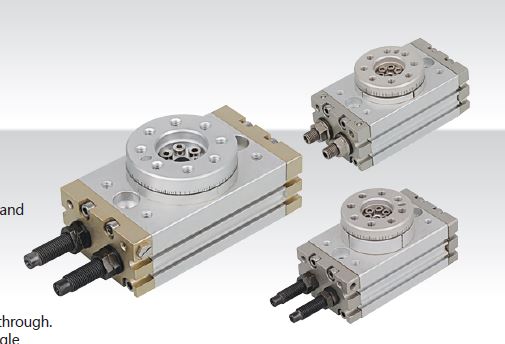

MSQ
| Port size: | M5 x 0.8, Rc 1/8 |
|---|---|
| With angle adjusting screw: | 1 MPa |
| Ambient and fluid temperature: | 0～60 ℃ |
| Bore: | Ф15, Ф18, Ф21, Ф25, Ф28, Ф32, Ф40 |
| Bore (mm) | 10 | 20 | 30 | 50 | 70 | 100 | 200 | |
|---|---|---|---|---|---|---|---|---|
| Operation Fulid | Air ( Non-lub) | |||||||
| Operation | Double Acting | |||||||
| Max. Operation Pressure | With angle adjusting screw | 1 MPa | ||||||
| With hydralic Cushion | 0.6 MPa | |||||||
| Min. Operation Pressure | 0.1 MPa | |||||||
| Ambient and fluid temperature | 0~60 °C | |||||||
| Cushion | Rubber Buffer (Standard)/ Hydralic cushioning device (Optional) | |||||||
| Function | With angle adjusting screw | 0.007J | 0025J | 0.048 J | 0.081J | 0.24J | 0.32J | 0.56J |
| With hydralic Cushion | 0.039J | 0.116J | 0.294J | 1.1J | 1.6J | 2.9J | ||
| Angle adjusting range | 0~190o | |||||||
| Max. rotating angle | 190° | |||||||
| Steady rotating Time range | With angle adjusting screw | 0.2~1.0s/90o | 0.2~1.5s/90o | 0.2~2.0s/90o | 0.2~2.5s/90o | |||
| With hydralic Cushion | 0.2~0.7s/90o | 0.2~1.0s/90o | ||||||
| Bore | Ф15 | Ф18 | Ф21 | Ф25 | Ф28 | Ф32 | Ф40 | |||
| Port Size | M5 x 0.8 | Rc1/8 | ||||||
