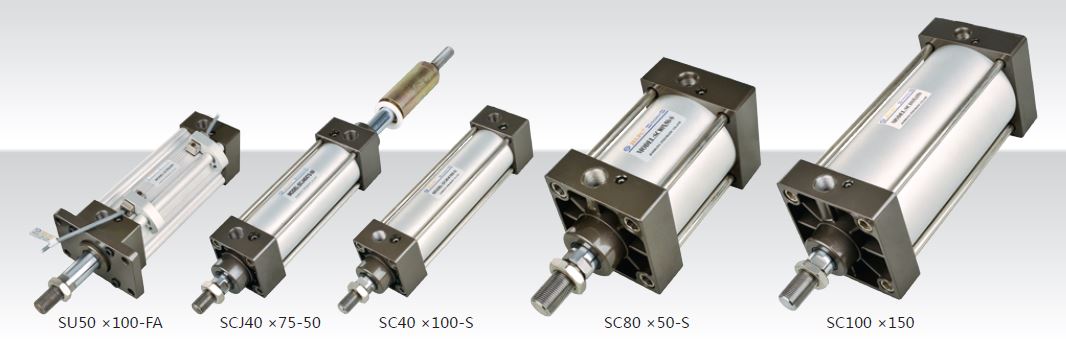

SC SU
| Port size: | G 1/8″ G 1/4″ G 3/8″ G 1/2″ G 3/4″ G 1″ |
|---|---|
| Operating Pressure Range: | 1～9.0 Kgf/cm2 |
| Operating Temperature Range: | 0～70 ℃ |
| Working Medium: | Air |
| Bore (mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 320 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Operation | Double Acting | ||||||||||
| Working Medium | Air | ||||||||||
| *Mountings | Basic FA FB CA CB LB TC TC-M | ||||||||||
| Operating Pressure Range | 1~9.0 Kgf/cm2 | ||||||||||
| Proof Pressure | 13.5 Kgf/cm2 | ||||||||||
| Operating Temperature Range | 0~70 C | ||||||||||
| Operating Speed Range | 50~800 mm/s | ||||||||||
| Cushion | Adjustable Cushioning | ||||||||||
| Adjustable Cushioning Stroke | 20 mm | | 26 mm | 45 mm | | 52 mm | | 66 mm | ||||||
| Port Size | G 1/8" | G 1/4" | G 3/8" | G 1/2" | G 3/4" | G 1" | |||||
