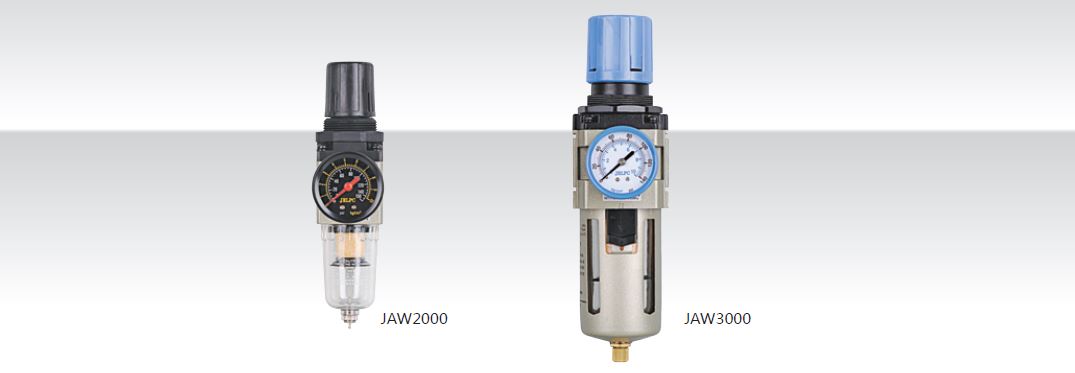

JAW
| Port size: | M5, 1/8, 1/4, 3/8, 1/2, 3/4, 1 |
|---|---|
| Max. Adjustable Pressure: | 1.0 MPa |
| Operating Temperature Range: | 5～60 ℃ |
| Valve type: | With Overflow |
| Model | JAW1000-M5 | JAW2000-01 | JAW2000-02 | JAW3000-02 | JAW3000-03 | JAW4000-03 | JAW4000-04 | JAW4000-06 | JAW5000-06 | JAW5000-10 |
|---|---|---|---|---|---|---|---|---|---|---|
| Rated Flow | 100 | 550 | 550 | 2000 | 2000 | 4000 | 4000 | 4500 | 5500 | 5500 |
| Port Size | M5 | 1/8 | 1/4 | 1/4 | 3/8 | 3/8 | 1/2 | 3/4 | 3/4 | 1 |
| Filter Precision | 25 μm | |||||||||
| Max. Adjustable Pressure | 1.0 MPa | |||||||||
| Ensured Pressure Resistance | 1.5 MPa | |||||||||
| Operating Temperature Range | 5~60 °C | |||||||||
| Range of Adjustable Pressure | 0.05-0.7 MPa | 0.05-0.85 MPa | ||||||||
| Container Material | Poly Carbonate | |||||||||
| Container Cup | Not Available | Iron | ||||||||
| Drain Function | Differential Drain | | Differential Drain, Automatic Drain | ||||||||
| Valve Type | With Overflow | |||||||||
