SLC

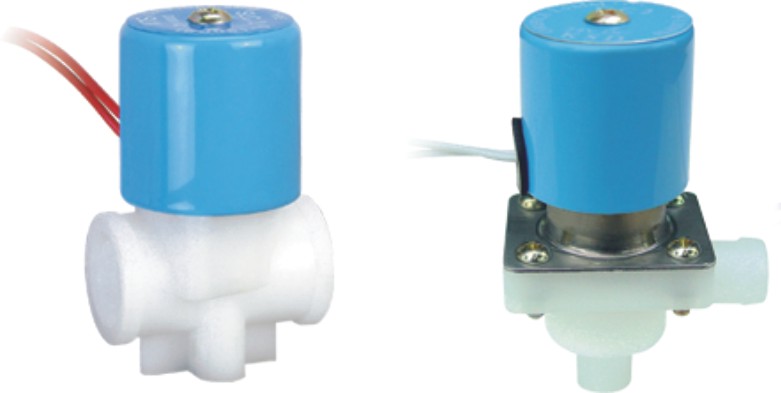

Series water dispenser plastic solenoid valve
| Body: | polipropylen, poliamid |
|---|---|
| Orifice Φ [mm]: | 2.5 ~ 3.0 |
| Pressure: | 0 ~ 8 bar |
| Pipe connection: | 1/8" ~ 1/4" |
| Media: | water, boiling water |
| Type: | normally close |
Specification
Direct acting. Normally closed
Response time: 6~20MSEL
Mounting: Solenoid vertical and upright direction. Fixing screw M5
Using
Fluid media: water
Fluids temp.:0°C ~100`C
Ambient temp.:-10°C ~ +40°C
Characteristics
Pow consumplat ACI3.8VA(Holing)DC911
Vcitage:AC: 24V 110V 220V 511130Hz, DC: 24V
Voltage Tolerance:-10%
Coil class: Class B 130
Duty cycle: 100%
lead length:30 CM(12
Component Material
Plunger IJ117
Seals: EPDM
Body: PP. 1/8(black),1/4(white), nylon66
Shading Ring: red copper
