ZCT

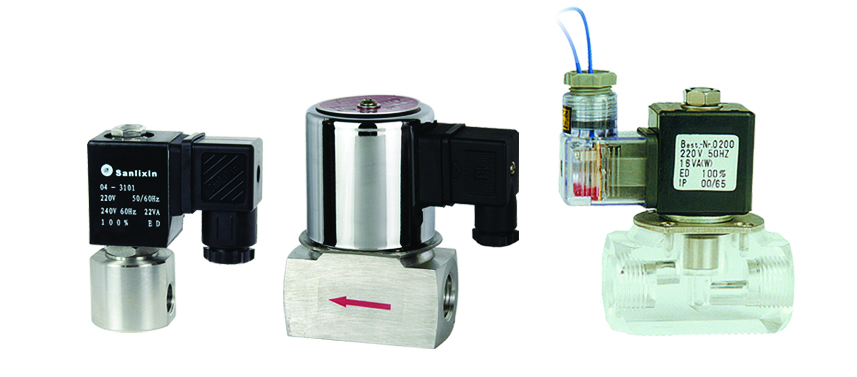

2/2-way series solenoid valve
| Body: | stainless steel, polycarbonate |
|---|---|
| Orifice Φ [mm]: | 3 ~ 15 |
| Pressure: | 0 ~ 13 bar |
| Pipe connection: | 1/8" ~ 1" |
| Media: | steam, water, air, gases, oils |
| Type: | normally close |
1: 2-Way normally dosed solenoid valve; Closed when de-energized, open when energized.
2: Body material: stainless steel and Plexiglas (standard), brass (special made)
3: Max. Allowable pressure 12kgf/cm2; Ambient Temp. 0-65°C (F CLASS) 0-80°C (H CLASS)
4: Flow as the arrow, mounts in any position; Best position Is Solenoid vertical and upright direction.
5: Voltage: 220VAC230VAC/240VAC/110VAC/24VAC 50/60HZ 24VDC/12V; Voltage Tolerance: +10% to -10% applicable voltage
6: Coil can fix Germany NASS Coil, for the orifice is 3mm only, Standard voltage: 220VAC 50/60HZ 24VDC
7: This series valves are offered VITON for Seals
