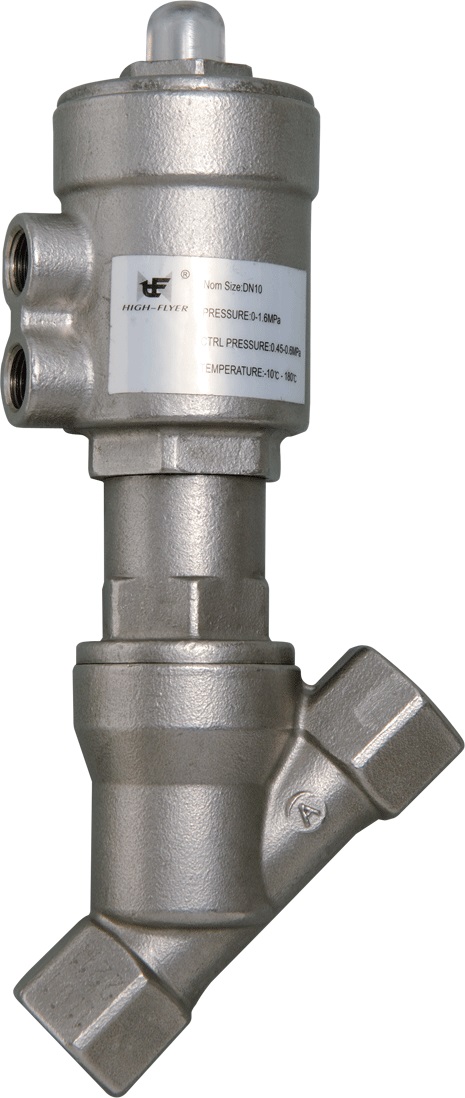

F32

Zawory pneumatyczne F32
Joint size: DN10-DN20
Thread: BSP, BSPT.NPT, NPTF
Welded: ISO1127/4200,
DIN11850.1,
DIN11850.2
DIN11850.3,
SMS3008,
ASME BPE
Valve body: CF8/CF8M
Actuator: CF8
Seat seals: PTFE/RTFE
Stem seals: PTFE/FKM
Piston seals: FKM/NBR
Applicable medium: Water, liquid,
neutral gas, Water steam,
Slight corrosive gas and liquid
Temperature range: -10 to+180 C(F32-H)
-10 to+100 C(F32-L)
Ambient temperature: -10 to+60 C
Viscosity: max 600mm2/s
Installation: Any position
Controlling medium: Air or neutral gas
Controlling pressure range: 0.3-1Mpa
