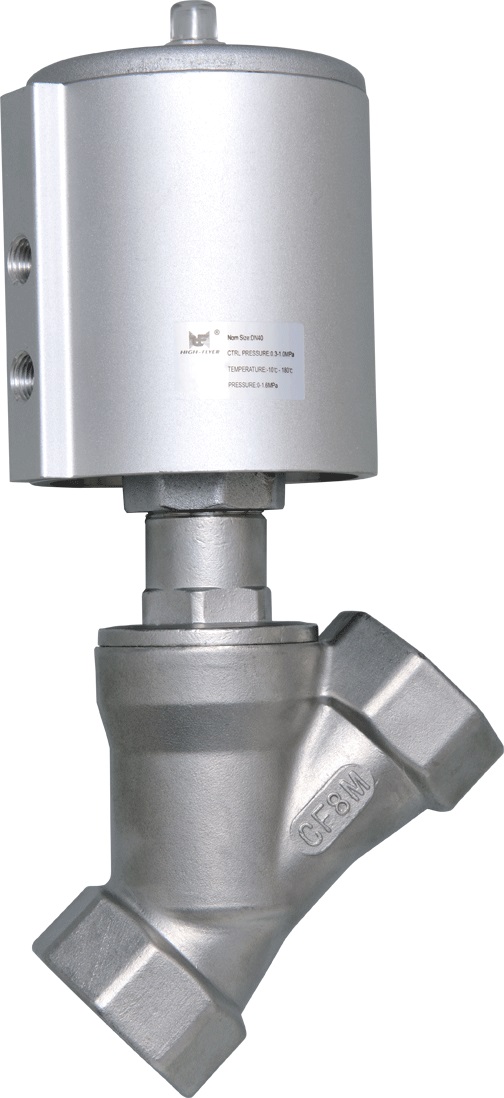

H2600
| Joint size: | DN10-DN65 |
| Thread: | BSP, BSPT.NPT, NPTF |
| Welded: | ISO1127/4200, DIN11850.1, DIN11850.2 DIN11850.3, SMS3008, ASME BPE |
| Valve body: | CF8/CF8M |
| Actuator: | Aluminium alloy |
| Seat seals: | PTFE/RTFE |
| Stem seals: | PTFE/FKM |
| Piston seals: | FKM/NBR |
| Applicable medium: | Water, liquid, neutral gas, Water steam, Slight corrosive gas and liquid |
| Temperature range: | -10 to+180 C |
| Ambient temperature: | -10 to+60 C |
| Viscosity: | max 600mm2/s |
| Installation: | Any position |
| Controlling medium: | Air or neutral gas |
| Controlling pressure range: | 0.3-1Mpa |
